SHOP FITTING CURLY CORDS
Often called “Lighting Cords” or “Shop fitting style curly cords”
Our Australian 240v style PVC Mains Flex Power Curly Cords are Generally used for, or known as:
- 240v Pendant outlets Curly Cords
- 240v Pendant lighting Curly Cords
- Drop lighting Cords
- Display Cabinets Power Cords
- Refrigeration Curly Cords
Often used in shopping centres, service stations, hair dressers, and other retail stores or outlets. Also used in various many other applications that would benefit from a flexible, cosmetically appealing power cord.
These cords are often used for their “Cosmetic Effect” I.E. to finish off the installation, and make the wiring look neat and tidy.
Important Note: This type of cord is generally considered non self retracting.
In many applications you actually don’t need or want the cords to self retract.
You often want the cord to sit at the designated height.
i.e. You can stretch these cords out, and they will generally sit at the stretched length.
*If you need retractable cords please see our Polyurethane sheathed cords.
These cords must be terminated and installed by a licensed electrician.
Like many of our curly cords, we routinely do this type of curly cords in 300mm, 500mm, 1000mm, and 1800mm.
That is measuring them in the compressed state.
These PVC curly cords extend up to 3 times those lengths.
And come with an extra 150mm straight tails on each end.
We also routinely do them in
1mm²,
1.5mm² and
2.5mm²
(as well as 0.75mm² and even 4mm² as specials)
Black and White are standard. Normally No M.O.Q.
Grey and Orange usually only available as specials. M.O.Q.’s may apply.
3 Core (including Green/Yellow Earth) is standard.
Other core counts may be possible. including:
2 Core (no Green/Yellow Earth)
4 Core (Including Green/Yellow Earth)
5 Core (Including Green/Yellow Earth)
M.O.Q.’s may apply.
| 3 Core (including Green/Yellow Earth) |
|
| 1mm² Black | |
| PRO-E3010-0300-150-BK | 300mm with 150mm tails. Extends up to 900mm +Tails. |
| PRO-E3010-0500-150-BK | 500mm with 150mm tails. Extends up to 1500mm +Tails. |
| PRO-E3010-1000-150-BK | 1000mm with 150mm tails. Extends up to 3000mm +Tails. |
| PRO-E3010-1800-150-BK | 1800mm with 150mm tails. Extends up to 5400mm +Tails. |
| 1mm² White | |

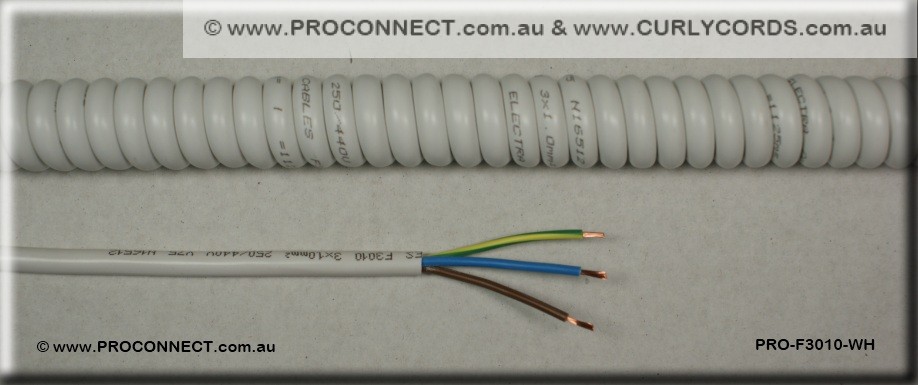

| PRO-E3010-0300-150-WH | 300mm with 150mm tails. Extends up to 900mm +Tails. |
| PRO-E3010-0500-150-WH | 500mm with 150mm tails. Extends up to 1500mm +Tails. |
| PRO-E3010-1000-150-WH | 1000mm with 150mm tails. Extends up to 3000mm +Tails. |
| PRO-E3010-1800-150-WH | 1800mm with 150mm tails. Extends up to 5400mm +Tails. |
| 1.5mm² Black | |
| PRO-E3015-0300-150-BK | 300mm with 150mm tails. Extends up to 900mm +Tails. |
| PRO-E3015-0500-150-BK | 500mm with 150mm tails. Extends up to 1500mm +Tails. |
| PRO-E3015-1000-150-BK | 1000mm with 150mm tails. Extends up to 3000mm +Tails. |
| PRO-E3015-1800-150-BK | 1800mm with 150mm tails. Extends up to 5400mm +Tails. |
| 1.5mm² White | |
| PRO-E3015-0300-150-WH | 300mm with 150mm tails. Extends up to 900mm +Tails. |
| PRO-E3015-0500-150-WH | 500mm with 150mm tails. Extends up to 1500mm +Tails. |
| PRO-E3015-1000-150-WH | 1000mm with 150mm tails. Extends up to 3000mm +Tails. |
| PRO-E3015-1800-150-WH | 1800mm with 150mm tails. Extends up to 5400mm +Tails. |
| 2.5mm² Black | |
| PRO-E3025-0300-150-BK | 300mm with 150mm tails. Extends up to 900mm +Tails. |
| PRO-E3025-0500-150-BK | 500mm with 150mm tails. Extends up to 1500mm +Tails. |
| PRO-E3025-1000-150-BK | 1000mm with 150mm tails. Extends up to 3000mm +Tails. |
| PRO-E3025-1800-150-BK | 1800mm with 150mm tails. Extends up to 5400mm +Tails. |
| 2.5mm² White | |
| PRO-E3025-0300-150-WH | 300mm with 150mm tails. Extends up to 900mm +Tails. |
| PRO-E3025-0500-150-WH | 500mm with 150mm tails. Extends up to 1500mm +Tails. |
| PRO-E3025-1000-150-WH | 1000mm with 150mm tails. Extends up to 3000mm +Tails. |
| PRO-E3025-1800-150-WH | 1800mm with 150mm tails. Extends up to 5400mm +Tails. |
In many of these applications these curly power cords are fitted off using a stainless steel wire through the centre of the cords which attaches to the light fixture or the pendant outlet. (particularly the longer length cords)
Note: It is important to not use uncoated wire as this may have an abrasive effect on the cords!
| Plastic Coated Stainless Steel Wire |  |
| Part Number | Description |
| PRO-PC7916 | 1.6mm Stainless Steel Clear Plastic Coated to 2.0mm Wire per m |
| Swages. | |
| PRO-Swage-1.6 | Swage to suit 1.6mm Stainless Steel Wire. Recommended 2 at each end. (4 per cord) Strip Insulation off the wire rope before crimping. |
Unless specifically indicated, all curly cords are supplied UNTERMINATED.
These extended or Drop Lengths, are not set in stone, and due to the nature of the cords, they are somewhat flexible. The longer you extend them out…the more stretched out the cord looks. And with these cords they are used for cosmetic effect. Some people like to work on a 2 to 2.5 time extension as they feel this give a nicer cosmetic effect. This of course is a matter of personal opinion, and ultimately it is up to the installer and client to determine what is best for the particular situation. As a general rule we say up to 3:1 extension ratio.
P.O.A.: Priced on Application
Note: Not all core counts / core sizes / coil lengths available. Some M.O.Q.’s may apply.
Please email sales@proconnect.com.au for prices and availability.
