Please Note: Retractor mechanism, and curly cords are sold separately.
Retractor Mech Part Number: PRO-RM2M
The special retractor mechanism has an integrated ratchet feature.
When pulled down it latches in place.
To raise it again, simply give it a slight downward pull down (not to the side), and rapidly push upwards. (while maintaining control!)
Very similar in operation to Venetian blinds.
Often these retractors are used in conjunction with our PVC Mains Flex Curly Cords.
The electrical cable does not retract into the mechanism.
Rather it retracts a rope that is attached to a fixture e.g. a suspended socket outlet.
Please Note: Retractor mechanism, and curly cords are sold separately.
|

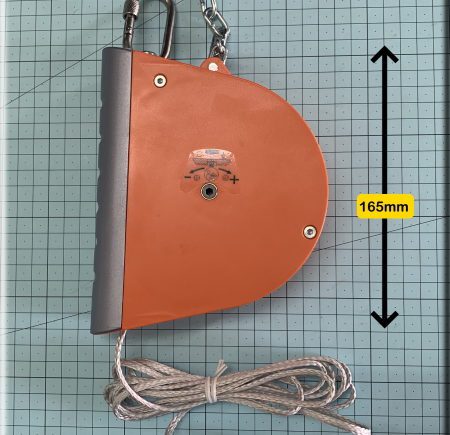

PRO-RM2M
|
PROCONNECT Retractor Mechanism with Ratchet Lock. 0.5-2kg Capacity. 0.9kg Weight. 2.5m Stroke Length. Fitted with Dyneema Style Non Conductive Rope. |
When used with the retractors, the curly cords come in the following options:
| 1.5mm² Black | |
| PRO-E3015-500-500-150-BK | 3 core 1.5mm² 500mm, Extends to 1.5m |
| PRO-E3015-1000-500-150-BK | 3 core 1.5mm² 1000mm, Extends to 3m |
| PRO-E3015-1800-500-150-BK | 3 core 1.5mm² 1800mm, Extends to 5.4m |
| 1.5mm² White | |
| PRO-E3015-500-500-150-WH | 3 core 1.5mm² 500mm, Extends to 1.5m |
| PRO-E3015-1000-500-150-WH | 3 core 1.5mm² 1000mm, Extends to 3m |
| PRO-E3015-1800-500-150-WH | 3 core 1.5mm² 1800mm, Extends to 5.4m |
| 2.5mm² Black | |
| PRO-E3025-500-500-150-BK | 3 core 2.5mm² 500mm, Extends to 1.5m |
| PRO-E3025-1000-500-150-BK | 3 core 2.5mm² 1000mm, Extends to 3m |
| PRO-E3025-1800-500-150-BK | 3 core 2.5mm² 1800mm, Extends to 5.4m |
| 2.5mm² White | |
| PRO-E3025-500-500-150-WH | 3 core 2.5mm² 500mm, Extends to 1.5m |
| PRO-E3025-1000-500-150-WH | 3 core 2.5mm² 1000mm, Extends to 3m |
| PRO-E3025-1800-500-150-WH | 3 core 2.5mm² 1800mm, Extends to 5.4m |
Please email Sales@PROCONNECT.com.au with your inquiry.
