USB Cords for Steering Wheels used for Race Car Simulators or other hard wired applications
These cords use a Fully screened cable (Foil and drain wire, or Braid) with Molded Connector.
Connector has integral molded strain relief.
PVC Sheath.
These cords are usually wound on demand.
USB A Male to Blunt Cut

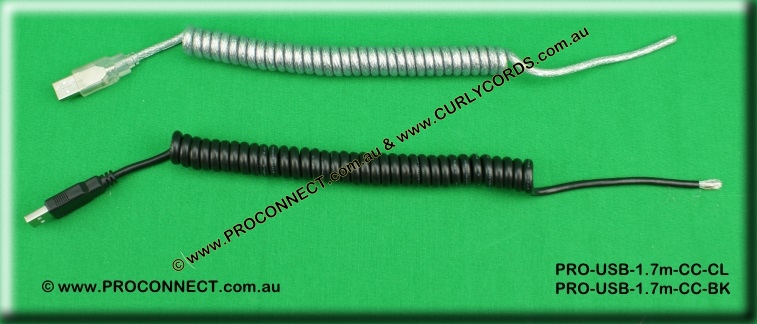

| PRO-USB-1.7m-CC-CL | USB A Male to Blunt Cut cord. 1.7m total length. Clear/Silver. Coiled into curly cord Approx 180mm, with 50mm tails on USB end, 100mm tails on blunt cut end. Extends to approx 1m. |
$15.00 | Click here to order |
| PRO-USB-1.7m-CC-BK | USB A Male to Blunt Cut cord. 1.7m total length. Black. Coiled into curly cord Approx 180mm, with 50mm tails on USB end, 100mm tails on blunt cut end. Extends to approx 1m. |
$22.00 | Click here to order |
| PRO-USBAM-200-200-300 | USB A Male to Blunt Cut cord. Coiled into curly cord Approx. 200mm, with 200mm tail on USB Plug end and 300mm tails on blunt cut end.Black or Clear/Silver depending on available stock. |
$22.00 | Click here to order |
PRO-1TP+2C0.14SCN-PU
This special cable that has a much higher quality polyurethane sheath. Which makes this range of cords much more robust and retractile than the PVC cords above.
This cable has and 2 cores for 5v power+ (Red) & ground (Black),
and a twisted pair (Green and White) for data.
And is double screened with a foil, and multi stranded tinned copper spiral lapp screen.
300mm or 500mm coil, with 150mm straight tails. (other lengths are also possible)
Normally supplied unterminated, but we can also fit connectors. Please email for quote.
Glands to suit:
12.5mm Mounting hole.
| HE3207 Black or HE3208 Grey |
PG7 Gland Black or Grey depending on available stock. |
$3.60 | Click here to order |
| HE3237 Black or HE3238 Grey |
PG7 Spiral Pigtail Gland Black or Grey depending on available stock. |
$5.60 | Click here to order |
+GST
Free Regular delivery when ordered with curly cords.
