Suzi coils Truck/Trailer/Caravan cords

As used in Truck/Trailer/Caravan applications

We now have a range of 7 core trailer cord cords.

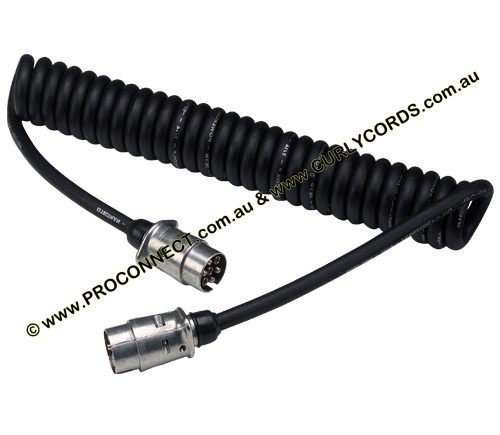

Suzi Coil 82524

All these cords are called “4.6m” as that is the total amount of cable in the cord. (American 15 foot)
This is industry terminology. We prefer to describe them:
Compressed coil length approx 300mm, Short tails are approx. 250mm. Long tails are approx. 1m
All cords extend to approx 2.4m



Part Number Description
PRO-PF82524 7 Core 4mm, 4.6m long, 6x4mm (2mm²) & 1x 5mm (3mm²) cores, 2 short tails with fitted plugs
PRO-PF82522 As PRO-PF82524 above, no plugs
PRO-PF82528 7 Core 4mm, 4.6m long, 6 x 4mm (2mm²) & 1 x 5mm (3mm²) cores, 2 short tails fitted with 1 standard plug & 1 heavy duty plug
PRO-PF82529 7 Core 4mm, 4.6m long, 6 x 4mm (2mm²) & 1 x 5mm (3mm²) cores, 1 short tail and 1 long tail fitted with 1 standard plug & 1 heavy duty plug
PRO-PF82536 7 Core 4mm, 4.6m long, 6 x 4mm (2mm²) & 1 x 5mm (3mm²) cores, 1 short and 1 long tail with fitted plugs
PRO-PF82530 As PRO-PF82536 above, no plugs
PRO-PF82540 Heavy-Duty 7 Core Suzi Coil, 4.6 metres with 6 x 5mm (3mm²), 1 x 6mm (5mm²) cores and 2 short tails
PRO-PF82546 Heavy-Duty 7 Core Suzi Coil, 4.6 metres with 6 x 5mm (3mm²), 1 x 6mm (5mm²) cores and 1 short and 1 long tail
PRO-PF82556 Extra Heavy-Duty 7 Core, 4.6m long, 4 x 5mm (3mm²), 2 x 6mm (5mm2) & 1 x 8WG (8mm²) cores, 2 short tails with fitted plugs
PRO-PF82558 Extra Heavy-Duty 7 Core, 4.6m long, 4 x 5mm (3mm²), 2 x 6mm (5mm²) & 1 x 8WG (8mm²) cores, 1 short tail and 1 long tail with fitted plugs



Special version especially for ESB/ABS systems.

SUZI COILS EBS/ABS
12/24v 7 core
PRO-PF82560 12/24 Volt 7 Core EBS Suzi Coil, 4.5 metres with two short 250mm tails fitted with P/No. PRO-PF82196 12/24 Volt EBS Plugs













2 thoughts on “Suzi coils Truck/Trailer/Caravan cords

  1. Anthony says:

    Hi I am after a short 300 mm electrical suzi coil for my prime mover I need a small diameter so it will fit inside the air coils so I can then fit a microfiber sock over all three what would you recommend
