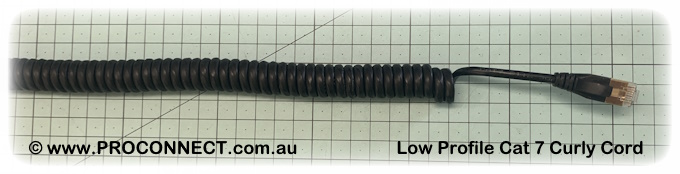

RJ45 Data/Network Curly Cords

PRO-CAT5E-PUa.jpgWe offer a special Industrial Grade Cat5e UTP Network cable

These do not use ordinary cat5e cable.
This special construction includes highly stranded wire:-
45 super fine strands of 0.08mm² 45/.08bc,

Also included is a Kevlar central strength members,


And our special polyurethane jacket.

These cords extend up to 4 times their compressed length.PRO-CAT5E-PUb.jpg
Series Part Number
PRO-Cat5e-PU-XXX (optional-T)
Where XXX is the coil length
Normally supplied unterminated.
Can be supplied with standard RJ45 connectors if required. Add -T suffix to the part number


Coil Lengths:


  • 300mm extends to 1.2m max
  • 500mm extends to 2m max
  • 1000mm extends to 4m max
  • 1800mm extends to 7.2m max
  • Custom (MOQ’s apply)


Please email sales@proconnect.com.au  for prices.









We have a new cable which not only has a cat5e 4pr cable, but 2x 1.5mm² DC power cable as well, all in a very robust Polyurethan sheath.







We can also supply and fit special water resistant industrial grade RJ45 connectors!













We have an small quantity of a special  cable, which is two of the above cables formed into a figure 8 construction, Which we supply straight or curly.







Bulk regular straight patch cords available at wholesale prices.
