Power and Control Curly Cords – Colour Coded PUR





Our special Polyurethane sheathed Power and Control Cords are made with industrial grade Orange POLYURETHANE sheathed, EPR Rubber insulated cable.

These cords are used for a variety of power and/or control uses. These special cords are: Halogen Free, Water Resistant, UV Stable, Extreme Mechanical Resistance: Cut & Abrasion Resistant, and has Good Chemical resistance (Oils, Grease and Fuels.) .



This range exhibits much higher retractability or “Spring” than the standard PVC cords.

Note: Because of the large number of possible configurations available, only a small selection of these cords are usually available from stock. Most configurations and larger quantities are coiled on demand.

Typically, we do 300mm, 500mm, 1000mm, and 1800mm versions.

That is the compressed length, and they can extend out up to 4 times those lengths.

(So a 1m cord would extend to 4m)

Plus they all have additional 150mm straight tails as standard.

These types are normally ORANGE.

But we do currently have a limited amount of 3 core 1.5mm², and 2.5mm² in BLACK.

Polyurethane
2 Core 0.75mm²
PRO-2×0.75ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-2×0.75ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-2×0.75ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-2×0.75ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
2 Core 1mm²
PRO-2×1.0ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-2×1.0ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-2×1.0ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-2×1.0ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
2 Core 1.5mm²
PRO-2×1.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-2×1.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-2×1.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-2×1.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
2 Core 2.5mm²
PRO-2×2.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-2×2.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-2×2.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-2×2.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
3 Core including earth 0.75mm²
PRO-3G0.75ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-3G0.75ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-3G0.75ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-3G0.75ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
3 Core including earth 1mm²
PRO-3G1.0ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-3G1.0ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-3G1.0ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-3G1.0ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.

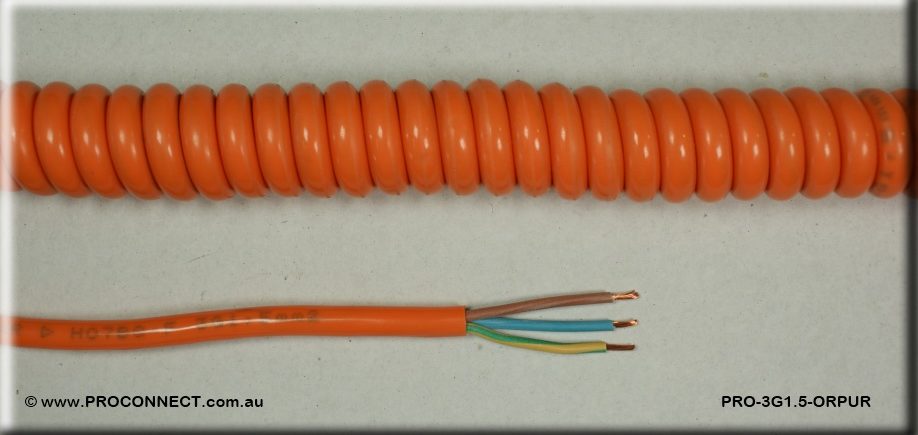

3 Core including earth 1.5mm²
PRO-3G1.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-3G1.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-3G1.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-3G1.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
3 Core including earth 2.5mm²
PRO-3G2.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-3G2.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-3G2.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-3G2.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
4 Core including earth 1mm²
PRO-4G1.0ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-4G1.0ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-4G1.0ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-4G1.0ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
4 Core including earth 1.5mm²
PRO-4G1.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-4G1.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-4G1.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-4G1.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
4 Core including earth 2.5mm²
PRO-4G2.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-4G2.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-4G2.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-4G2.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
5 Core including earth 1mm²
PRO-5G1.0ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-5G1.0ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-5G1.0ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-5G1.0ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
5 Core including earth 1.5mm²
PRO-5G1.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-5G1.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-5G1.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-5G1.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.
5 Core including earth 2.5mm²
PRO-5G2.5ORPUR-0300-150 300mm with 150mm tails.
Extends up to 1200mm +Tails.
PRO-5G2.5ORPUR-0500-150 500mm with 150mm tails.
Extends up to 2000mm +Tails.
PRO-5G2.5ORPUR-1000-150 1000mm with 150mm tails.
Extends up to 4000mm +Tails.
PRO-5G2.5ORPUR-1800-150 1800mm with 150mm tails.
Extends up to 7200mm +Tails.



These cords are rated to extend Three to Four times the compressed length ie up to a 4:1 Ratio. And if especially wound for it, some variations can be configured to extend much further. Some up to 6:1 Ratio or more!

These types are normally ORANGE.
But we do currently have a limited amount of 3 core 1.5mm², and 2.5mm² in BLACK.

Note: Unless specifically indicated, all curly cords are supplied UNTERMINATED.

When operated in the horizontal orientation, these cords are deemed to be `Self Retracting` When operated in a vertical orientation, the weight of the cord plus the weight of the outlet or other fixture will naturally make the cord partially extend.

Mock ups of potential applications:





33 thoughts on “Power and Control Curly Cords – Colour Coded PUR

  1. millard electrics says:

    hi, can you please quote me on your pur orange curly cable
    i need 4x 3 core 2.5mm with a 1.2m coil one end straight tail 150mm the other straight tail 1000mm
    we would require postage to melbourne
    could you please also advise of the time it would take to prepare and send this order
    cheers jayson

  2. Peter B says:

    Hi Captain, I need a 3 core, 2.5mm wire dia PUR Curly cord that will stretch about 1700mm, it needs to fit inside a 26mm Id tube. Is this available and if so how much? Delivery is to 2365 post code.
    Thanks Pete.

    • Paul Scott says:

      Hi Pete,
      Thanks for your comment/inquiry.
      We can certainly help you with a 3 core 2.5mm Polyurethane curly cord that will stretch out to 1700mm.
      The only problem is the Diameter.
      Using that cable, our coil diameter is approx 40mm
      Our cable diameter is approx 11mm, so we need more room to form the coil.
      Even 1.5mm cable would be too big when coiled.
      Can you increase the tube size?

      All the best…
      Paul.

    • Paul Scott says:

      This range only comes in orange. Sorry.

      This combination of materials, and coiling produces some of the most “springy” cords we do for mains power.

      Best regards

      Paul.

  3. George Dib says:

    Greetings. Love your website so informative and a lot of happy people.

    I am looking at a long term supplier of these as i am manufacturing a product currently in its prototype stage. What i need is a curly cord that would stretch about a meter and compact as much as feasibly possible. If you have an off the shelf product that is even better. Don’t care about color just price on 10 units for now with next order about 50 with regular supply please.

    Need assp please . Delivery is to 2158.

    Thanks so much

    Cheers.

    • Paul Scott says:

      Hi George,
      Thanks for your comment.
      Can you please tell me a few more details about the requirements?
      Mainly how many cores? core size? voltage rating? use? connectors?

      Feel free to email the details to me at Sales@PROCONNECT.com.au
      and I’ll get straight back to you.

      All the best…
      Paul.

  4. James Kipper says:

    Hi There,
    Just after a 1.5mm 2c+e (Brown blue Green/yellow) curly power supply lead for a machine we have.
    1000mm compressed length.
    Could you please email us some prices and specs
    Thanks in advance.

  5. Leon van Kollenburg says:

    Good afternoon Paul
    Can you price 2 orange curly leads for the Badger Creek cfa
    Both 2c and earth 1.5mm total length
    1x 3400mm 1x 2700mm with 300mm of straight on each end .
    Can you please also price a 3 pin plug top on each end male on top female the other not necessarily switched
    Thanks Leon

  6. Jim Lanskey says:

    Could we please order 2 x 1000 orange cords in 5 core 1.5 mm or 2.5 mm whatever you have in
    stock ? We have purchased products off you previously .
    Thanks
    Jim Lanskey
    Jim Lanskey Electrical
    937 Black River Road
    Black River QLD 4818

  7. Wayne Nelson says:

    Hi Cap,
    need heavy duty power curly cords in orange PUR compressed lengths of
    300mm
    500mm
    1000mm
    1800mm
    one set of 2.5mm and one set of 1.5mm so eight curly cords total
    I will use these for power tool extension cords

  8. Robert Lowe says:

    Hello
    Would you please supply a quote for 1 x 1800mm, 2.5 sq. mm lead, in black if possible.

    Thank you.

  9. Allan Clark says:

    Please quote me 2 x 1800 Curley cables 3 core for my Davco hand held winch controls, the old ones are breaking up , that is the cover around the wires is, the thickness of the cable outside is 5mm. Thanks Allan

  10. Glenn says:

    Can you please quote me for 2 x curly cords in white as illustrated below.

    Can the curly cords come pre-terminated into a Clipsal SS15 as well as the 1mm S/S cable?

    Overall ceiling height is 2950mm.

    Delivery will be to Narellan NSW 2567.

    I will attached a picture of what is required when you email me.

    • Paul Scott says:

      Hi Glenn,
      We can supply the curly cords, stainless steel wire, and Clipsal SS15 pendant outlet. They don’t come pre-terminated.
      They need to be fitted by an electrician (like yourself) 🙂
      I’ll email you shortly.

  11. Nita says:

    HI Glenn,

    we need 240v Pendant outlet on curly cord . I believe the cable has three Pin top on one end and lengths of the cables given are while compressed. Please advise what are the max lengths of these when extended. also, please advise the price by email. we are required to test one first and if it fits our purpose, we are required about 10 for our store . just wondering if these can be made in white color NOT orange.

    Compressed Coil Lengths include:
    300mm
    500mm
    1000mm

  12. Zenon Arian says:

    Could you please provide prize for power curly cord PRO – 2. – 1.00 RPUR – 1000 -150 and delivery to Perth WA. Thanks
    Regards – Z. Arian

  13. Tolly Neil says:

    I want to buy a 1.8 m 3 core curly cord for an anchor winch control what is the part number.
    My phone is 0409034230
    Thank you
