Interbus Curly Cords

We are now able to produce INTERBUS curly cords.
Remote Bus Cable (RBC)
Suitable for highly flexible applications frequently moved machine parts instead of using power chains or cable tracks.

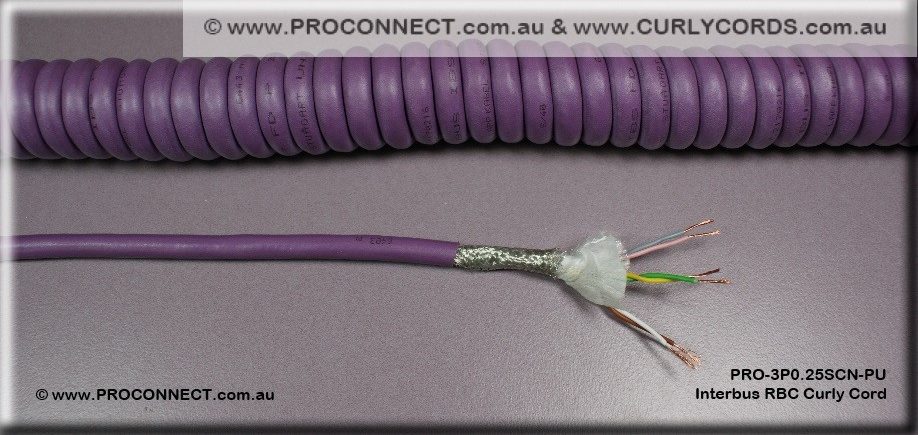

PRO-3P0.25SCN-PU-1a5

These cords can of course be used for a variety of other application.

Construction:

  • 3 twisted pairs
  • 100 Ohm Characteristic Impedance
  • 60 nF/km mutual capacitance at 800Hz
  • 0.25mm²
  • Braid Screen
  • Polyurethane sheath 7.9mm nominal



Coil Lengths include:

  • 300mm
  • 500mm
  • 1000mm
  • 1200mm
  • 1300mm (may have in stock…please email to confirm)
  • 1500mm
  • 1800mm
  • Custom coil lengths made to order (MOQ’s apply)

Straight tail length:

  • 150mm
  • Custom tails lengths made to order (MOQ’s apply)

Note: Unless specifically indicated, all curly cords are supplied UNTERMINATED.

Remember: we have an extensive range of connectors, and wiring accessories.
Please ask us about these as well.

2 thoughts on “Interbus Curly Cords

  1. Shane Carlyon says:

    Hi There,
    I am looking for a cable that I need to fix to a moving glass sliding screen, it travels a distance of 680mm. The cable is used to connect to a sensor that is fixed to the moving glass screen.
    I am after a cable that can connect to this sensor, we require 4 core 92 wires for 24vdc and 2 wires for 5vdc).
    Do you have or can you recommend a cable for this operation? I have been looking at the interbus cur;y cord, would this suit?
    The lengths shown here, 300mm , 500mm what length do they stretch too?
    Thank you.
