12v & 24v DC Power Curly Cords

Curly cords used for 12v & 24v DC systems.

EXTRA LOW VOLTAGE ONLY- NOT FOR MAINS CONNECTION

Note: Always select cords appropriate to your voltage, and current rating requirements.

Some of the uses of these cords include:

  • LED Floodlight/Spotlight on 4wd
  • Mobile fridge freezers
  • Plug-in/cigarette lighter mobile appliances
  • Hand Held Spotlights
  • Mobile equipment hookups-interconnects
  • Wired remotes: winches etc

Note: Depending on the application, many people also use our electronic signal cords, and/or 240v rated mains cords for 12v applications.

Unless specifically indicated, all curly cords are supplied UNTERMINATED.
Prices are per cord, and  Prices do not include GST



Approx “3 or 4mm AUTO or 16 B&S/AWG”

Extra Low Voltage DC Power Curly Cords. Not for mains connection.
2 core 1.5mm² Black with White Stripe and Printing
Polyurethane Insulated. 3.9×7.8mm Nominal O.D.
Nominal Coil O.D. 23 mm
PRO-2×1.5F8-PU-BK-300-150 Compressed Coil length of 300mm +150mm Straight Tails
Extends to 1.5 m including tails
$55.75 Click here to order
PRO-2×1.5F8-PU-BK-500-150 Compressed Coil length of 500mm +150mm Straight Tails
Extends to 2.3m including tails
$66.75 Click here to order
PRO-2×1.5F8-PU-BK-1000-150 Compressed Coil length of 1000mm +150mm Straight Tails
Extends to 4.3m including tails
$94.50 Click here to order
PRO-2×1.5F8-PU-BK-1800-150 Compressed Coil length of 1800mm +150mm Straight Tails
Extends to 7.5m including tails
$138.75 Click here to order

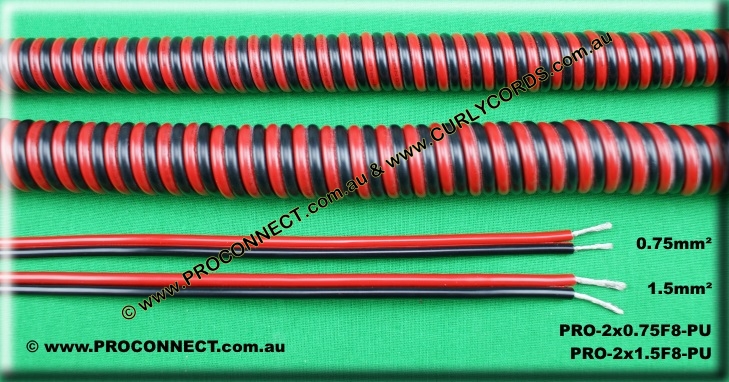

You may have seen similar Red and Black cable, but they mostly have just regular PVC insulation.
This special version uses a very robust Polyurethane insulation material. Making them a lot tougher than the look.

PRO-2x1.5F8-PU

Approx “3 or 4mm AUTO or 16 B&S/AWG”

Extra Low Voltage DC Power Curly Cords. Not for mains connection.
2 core 1.5mm² Red and Black Cable. 3.9×7.8mm Nominal O.D.
Nominal Coil O.D. 23 mm
PRO-2×1.5F8-PU-300-150 Compressed Coil length of 300mm +150mm Straight Tails
Extends to 1.5 m including tails
$55.75 Click here to order
PRO-2×1.5F8-PU-500-150 Compressed Coil length of 500mm +150mm Straight Tails
Extends to 2.3m including tails
$66.75 Click here to order
PRO-2×1.5F8-PU-1000-150 Compressed Coil length of 1000mm +150mm Straight Tails
Extends to 4.3m including tails
$94.50 Click here to order
PRO-2×1.5F8-PU-1800-150 Compressed Coil length of 1800mm +150mm Straight Tails
Extends to 7.5m including tails
$138.75 Click here to order



PRO-2x2.5ORPUR

Approx “5mm AUTO or 13 B&S/AWG”

Heavy Duty/Highly Retractile Cords
2 Core 2.5mm² Orange Polyurethane. 10.4mm Nominal O.D. Nominal Coil O.D. 39mm

Very robust! Double Insulated. High spring force.

PRO-2×2.5ORPUR-300-150 300mm Compressed Coil + 150mm Straight Tails.
Extends to 1.2m including tails.
P.O.A.
PRO-2×2.5ORPUR-500-150 500mm Compressed Coil + 150mm Straight Tails.
Extends to 1.8m including tails.
P.O.A.
PRO-2×2.5ORPUR-1000-150 1000mm Compressed Coil + 150mm Straight Tails.
Extends to 4.3m including tails.
P.O.A.
PRO-2×2.5ORPUR-1800-150 1800mm Compressed Coil + 150mm Straight Tails.
Extends to 7.5m including tails.
P.O.A.

Price On Application: Please email for pricing.





Approx “8 B&S/AWG”

PRO-PF-2×8-SC-ST 2 core 8mm² Red and Black,
Heavy Duty Black Sheath
Cable: 13.5mm Coil: 56mm
Short Coil, Short Tail.
Approx. 200mm coil plus 200mm tails.
Extends to 1.5m including tails.
80 Amp Continuous, 100 Amp Intermittent
$163.00 Click here to order







Approx “8 B&S/AWG”

PRO-PF-2×8-LC-LT 2 core 8mm² Red and Black, Heavy Duty Black Sheath
Cable: 13.5mm Coil: 56mm
Long Coil, Long Tail.
Approx. 480mm coil plus 300mm & 1000mm tails.
Extends to 3.7m including tails.
80 Amp Continuous, 100 Amp Intermittent
$295.25 Click here to order







Approx “4 B&S/AWG”

PRO-PF-2×21-LC-LT 2 core 21mm² Red and Black Bonded Figure 8 cable.
Cable: 10.3×20.6mm Coil: 88mm
Long Coil, Long Tail.
Approx. 410mm coil plus 300mm and 1000mm tails.
Ext 5.2m including tails.
110 Amp Continuous, 200 Amp Intermittent
$865.25 Click here to order





Approximate Auto Wire Size Conversion
“Auto”
Wire Size
mm²
2mm 0.5mm²
2.5mm 0.64mm²
3mm 1.13mm²
4mm 1.84mm²
5mm 2.8mm²
6mm 4.59mm²
